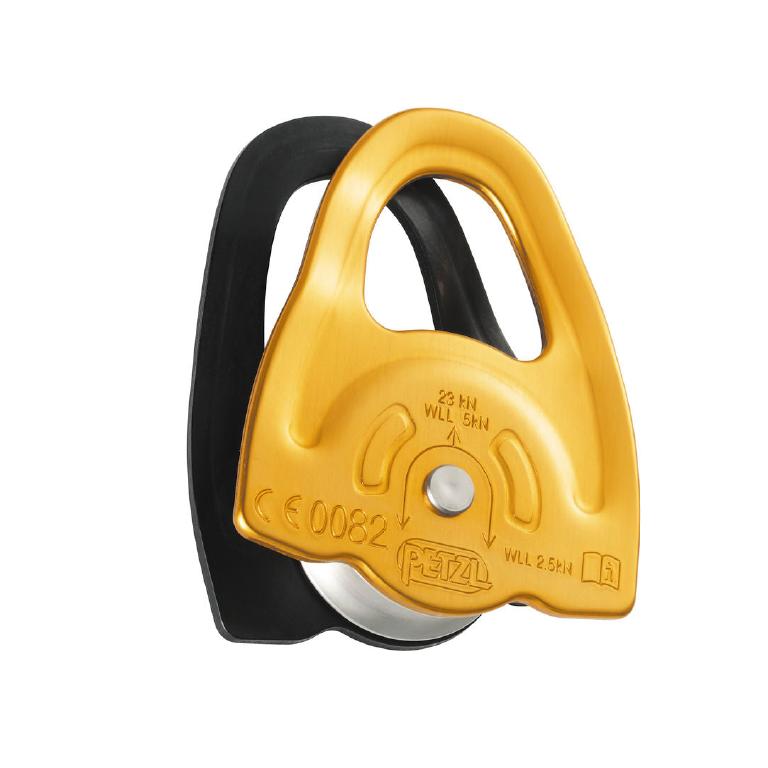

Lightweight Prusik pulley
The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.
Description
Special side plates designed for use with a Prusik friction hitch in lightweight progress capture systems
Sheave mounted on sealed ball bearings for excellent efficiency
Flat, compact and lightweight
Specifications
Material(s): aluminum side plates, aluminum sheave
Certification(s): CE EN 12278, UIAA
References
References P59A
Weight 80 g
Min. rope diameter 7 mm
Max. rope diameter 11 mm
Sheave type sealed ball bearings
Sheave diameter 25 mm
Efficiency 91 %
Working load on one rope strand: 2.5 kN
Working load 5 kN
Breaking strength 23 kN
