England’s Stove Work Grizzly Kit Camp Stove Get Authentic

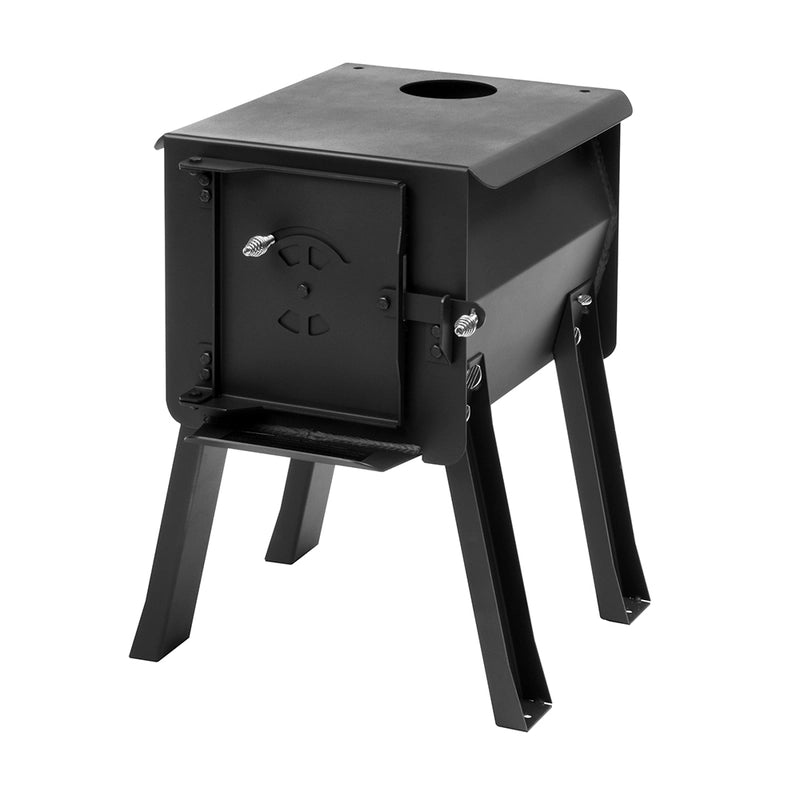

England’s Stove Work Grizzly Kit Camp Stove

---

Product Description

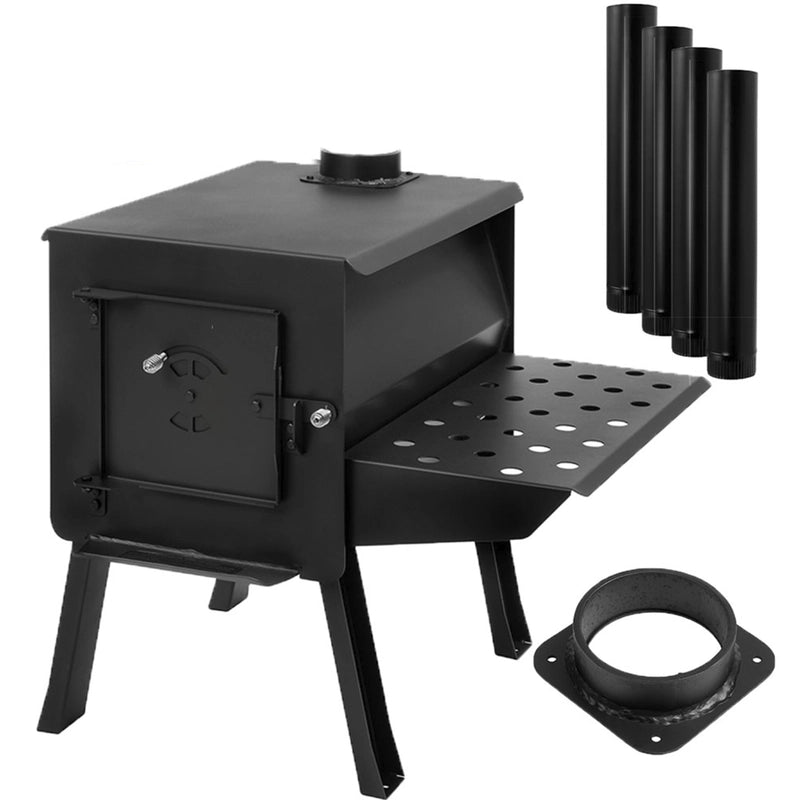

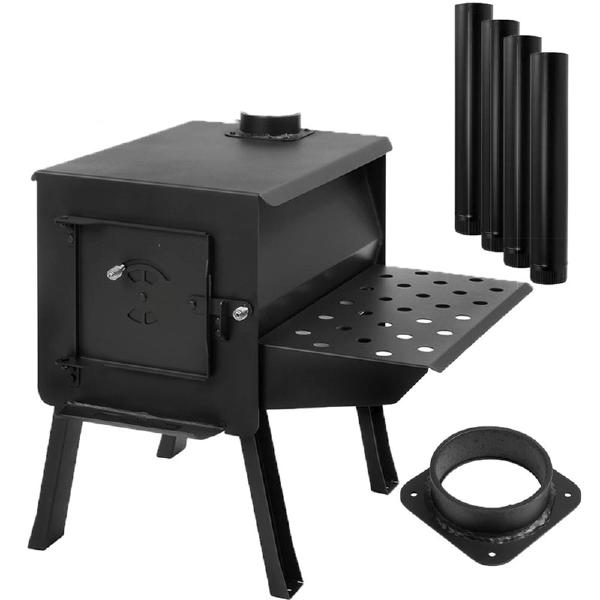

Kit Includes: “Grizzly” Campstove, Attachable Pipe Collar (AC-CSPC), Four 2′ Pipe Sections (AC-CSPIPEKIT), and Attachable Shelf (AC-CSSHELFL).

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove’s top edges are bent to double as handy carrying handles.

The 4” diameter pipe outlet (with included pipe collar) is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 800° F. The Grizzly is also large enough to heat wall tents up to 16′ x 24′.

NOTE: NOT for use in homes. Only for use outdoors.

• HexaTech™ Hexagonal firebox design provides long burn times and even heat distribution
• Circular door damper and in-door air redirect for easy start-ups and precise temperature control
• High temp. fiberglass door gasket is a unique feature that gives more efficient, longer-lasting burns
• Included spring handles keep the door latch and damper controls cool to the touch



Appliance performance

<col <col

Fuel type	Dry cordwood
Overall firebox volume	2.7 ft³



General features

<col <col

Recommended chimney diameter	4″
Flue outlet diameter	4″
Firebox size (Height)	15″
Firebox size (Width)	14 1/2″
Firebox size (Depth)	23 1/2″
Overall dimension (Height)	25 3/4″
Overall dimension (Width)	17″
Overall dimension (Depth)	28″
Door opening size (Height)	8″
Door opening size (Width)	8″
Distance-center of the flue outlet to back unit	3 1/2″
Distance-center of the flue outlet to side unit	9″
Steel thickness-body	12 Ga
Steel thickness-top	12 Ga
Warranty
Mobile home approved	No
Shipping weight	96 lb (44 kg) 75 lb (34 kg)
Maximum log length	22″
Log positioning	Loading over depth
Door type	Steel



Clearances

<col <col

CLEARANCE	SINGLE WALL PIPE	DOUBLE WALL PIPE
Back wall	48″	48″
Corner	48″	48″
Side wall	18″	18″
Base of the unit to ceiling	77 1/2″	77 1/2″

Product Documents

Installation and User’s Manual
